Compatible Standard
IEC61386-1, IEC61386-21
EN50267-2, IEC60754-1
IEC61034-2, ASTM E662
ISO4589-2, ISO19700, UL94

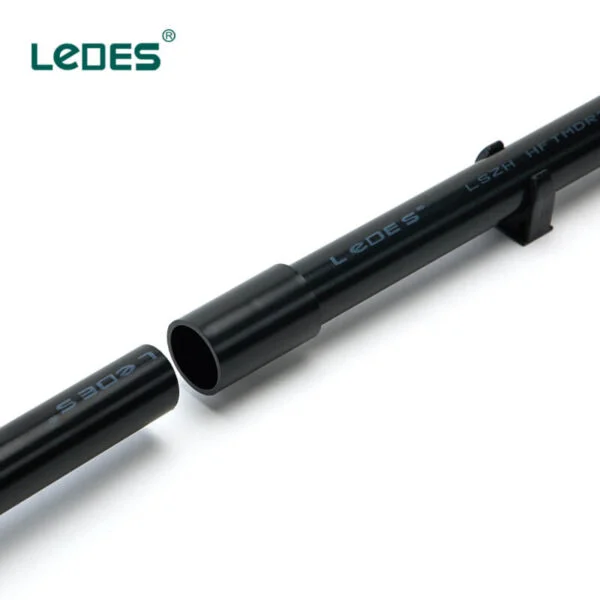

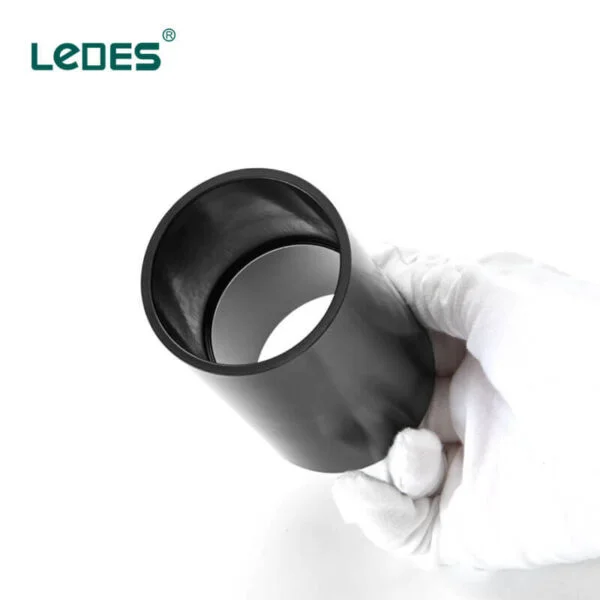

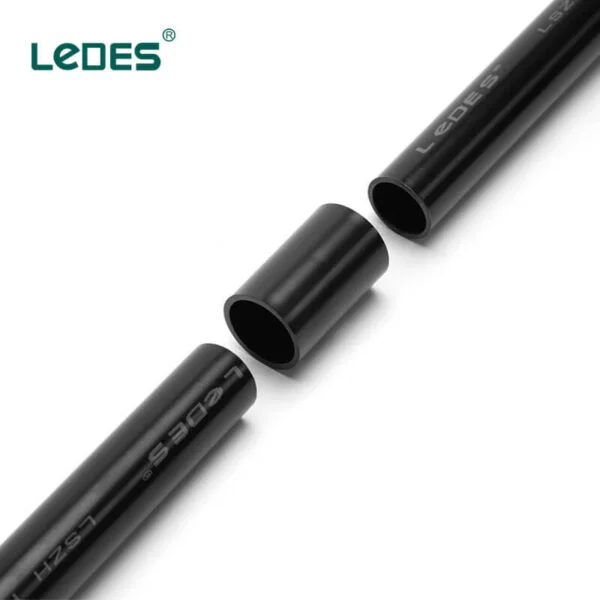

LSZH Conduit Coupler. Elevate your safety standards with our next-gen electrical pipe coupling. Designed to maximize personnel safety during fires, our conduits are crafted from halogen-free plastic, offering a greener alternative to traditional PVC couplers. Protect your team and the planet with our advanced solution.
Superior Flame Resistance. Our top-tier UL94V-0 fire rating ensures flames self-extinguish within 5 seconds after the fire source is removed, delivering unparalleled protection for your home and office. Rest easy with the ultimate safeguard.
Exceptional UV Resistance. Our conduit coupling withstand intense UV exposure, making them perfect companions for outdoor installations. They thrive even in the most severe weather conditions – a testament to their exceptional durability.
Unmatched Performance. Experience resilience at work with our connector’s expansive temperature range of -45 to +150℃ (-49 to 302℉), coupled with an IP65 waterproof rating, guaranteeing weatherproof reliability in any condition. Your all-weather ally.
Reliable Expertise. We are the cornerstone supplier for over 15 major construction projects globally and proudly serve thousands of companies across the US, Canada, Australia, the UAE, and Saudi Arabia. Your go-to for trusted partnership and proven performance.
Tailored Just for You. We offer fully customized solutions, tuning not just the size and color of our products but designing comprehensive, one-stop solutions for your project, leveraged by our extensive industry experience. Your plans, uniquely embodied.
Why You Need AS & IEC Approved LSZH Conduit Coupling?
Enhanced Safety and Efficiency with Ledes Electrical Couplings.
Our innovative LSZH electrical couplings eliminate halogen emissions, prioritizing:
Connect seamlessly and safely with Ledes couplings!
Eco-Friendly and Reliable Electrical Connections with Ledes.
Our LSZH electrical connections eliminate halogen emissions, prioritizing:
Choose Ledes for sustainable and reliable electrical solutions!
Enhanced Fire Protection for External Electrical Installations with Ledes Conduit Coupler.
Our UL94V-0 coupling offer exceptional fire safety with:
Trust Ledes for superior fire protection in your external projects.
Reliable and Affordable Electrical Protection for Outdoor with Ledes.
Our electrical conduit and fittings offers exceptional UV resistance, ensuring:
Invest in long-lasting and affordable outdoor electrical protection with Ledes!
Flexible and Reliable Electrical Connection with Ledes Electrical Couplings
Our electrical pipe connector offer:
Choose Ledes for flexible and reliable electrical connection!
Ageing Resistance | UV Stabilized |
Colors | White/Black/Grey |
Temperature Range | -45 to +150℃ (-49 to 302℉) |
Waterproof | IP65 or Above |
Raw Material | Halogen free thermoplastic |
Electrical Characteristics | Electrical Insulated |
Fire Rating | UL94V-0 |

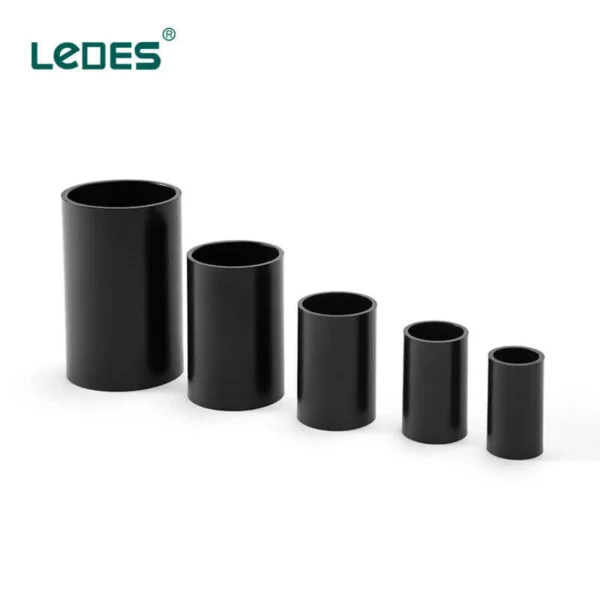

Products Code | Type | OD(mm) | ID(mm) | Packing |
LE-HF20C | ￠20 | 23.5 | 20 | 1000 |
LE-HF25C | ￠25 | 28.5 | 25 | 600 |
LE-HF32C | ￠32 | 37.0 | 32 | 300 |
LE-HF40C | ￠40 | 44.5 | 40 | 224 |
LE-HF50C | ￠50 | 55.6 | 50 | 126 |
LE-HF63C | ￠63 | 55.6 | 50 | 126 |
LE-HF80C | ￠88.9 | Customized | Customized | Customized |
LE-HF100C | ￠114.3 | Customized | Customized | Customized |
LE-HF125C | ￠140.0 | Customized | Customized | Customized |
LE-HF150C | ￠160.0 | Customized | Customized | Customized |
Remarks: can be customized thickness and color
Price List
Get the full price list now by contact our sales team.
15+ major projects globally, such as The CHPE, A.B.Brown Station, Abu Dhabi UAE Al Dhafra PV2 Project, Melbourne Metro Tunnel, Macau Island Hospital project, and more.
We are proudly the first UL and CSA Certified electrical conduit pipe and fittings supplier in China; we boast an array of certifications, including ASTM, IEC, AS/NZS, ROHS, CE, and ISO.
Ledes would like to connect with customers face-to-face, that’s why we participate in many exhibitions. For example, we have participated in the IBS exhibition in Las Vegas many times, as well as the Canton Fair. In the future, we look forward to seeing you at the show!
Ledes is a professional PVC electrical conduit and fittings factory, and we have two different facilities located in China. Our product is UL, CSA, ASTM, IEC, AS/NZS, ROHS, and CE certified.
Yes, Ledes offers fully customized services for electrical conduits and fittings. Not only the color and size, we can customize based on your construction project.
Different size of conduit has different MOQs; if you talk about PVC conduit, it is generally 3,000 meters to 5,000 meters (9,850 ft to 16,500 ft), depending on size.
The general L/D is 15 – 30 days, but it depends on your quantity.
We shipped goods to Guangzhou or Shenzhen port. Let us know if you have any special requests.
We accept 30% T/T pre-paid, and the rest 70% needs to be paid before shipment.
Yes, we support sample services; contact us to claim your sample today!
You can contact us in 3 different ways: submit the contact form, send an email, or send us WhatsApp messages.
