Compatible Standard
IEC61386-1, IEC61386-21
EN50267-2, IEC60754-1
IEC61034-2, ASTM E662
ISO4589-2, ISO19700, UL94

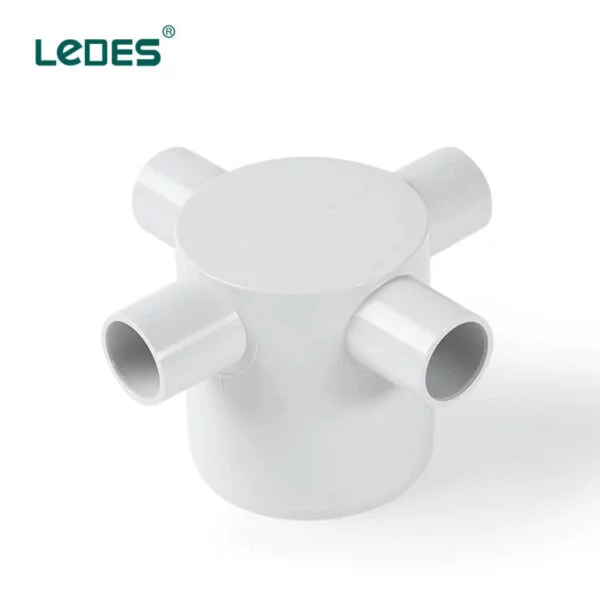

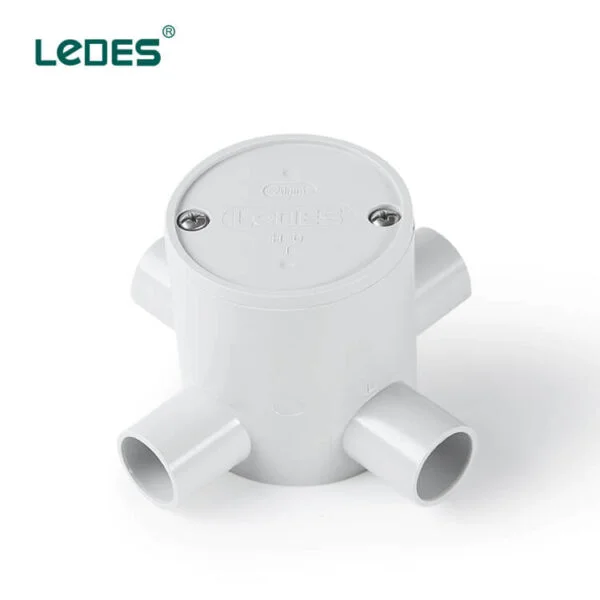

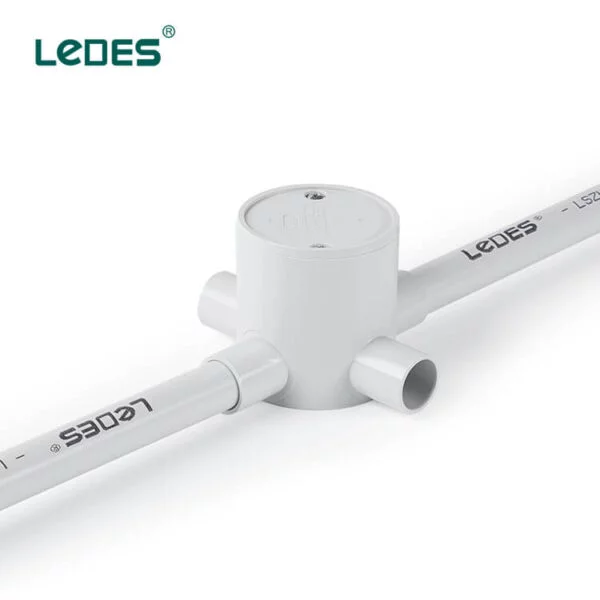

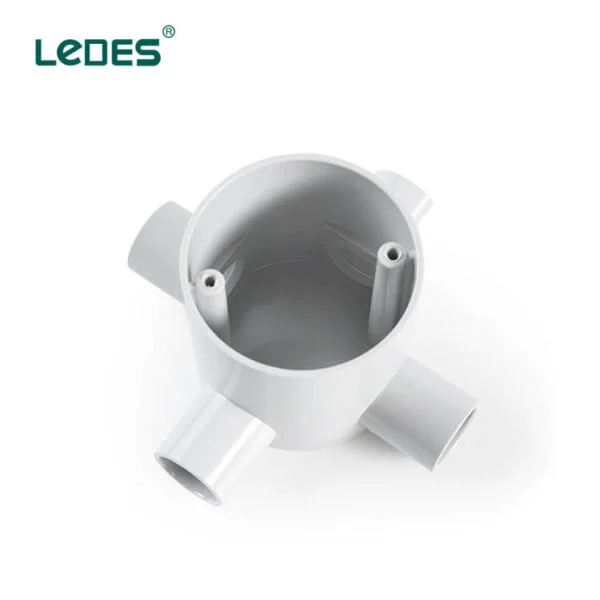

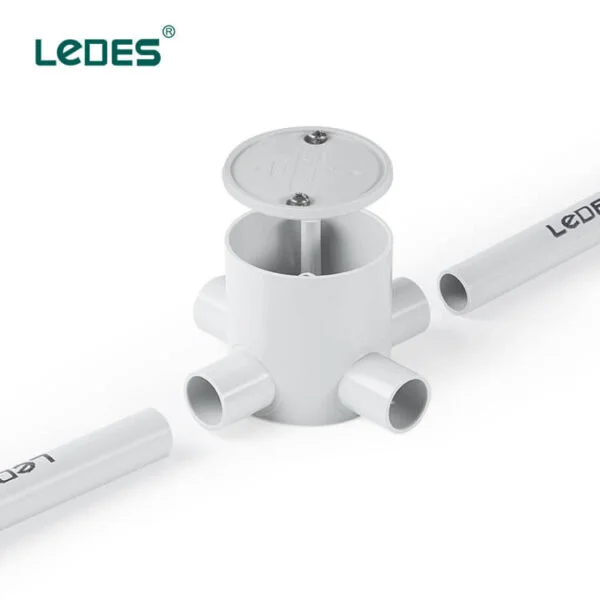

LSZH J Box. The cutting-edge solution in electrical piping and fittings designed to maximize personnel safety in fire situations. Crafted from halogen-free materials, this innovative junction box surpasses conventional PVC types in environmental friendliness and fire-safety features.
Fire Safety First. With a UL94V-0 fire rating, our product boasts self-extinguishing capabilities within 5 seconds of removing the flame source, offering superior protection for your home and office.
UV Resistance. Designed for outdoor installations, our product stands up to extreme UV exposure and harsh weather conditions, ensuring durability and longevity.
Peak Performance Guaranteed. Experience unmatched durability with a working temperature range of -45 to +150℃ (-49 to 302℉), combined with an IP65 waterproof rating. Perfectly weatherproof for any condition.
Trusted Partner. Serving as the trusted core supplier for over 15 large-scale construction projects across the globe, we’re proud to support thousands of companies in the US, Canada, Australia, UAE, and Saudi Arabia.
Fully Personalized Solutions. We provide more than just customization of size and color. Drawing on our extensive industry experience, we offer comprehensive, one-stop solutions tailored to the unique needs of your project.
Why LSZH Conduit Fitting is Most Popular in the World?
Safe and Efficient Electrical Cable Management with Ledes LSZH Electric Gang Boxes.
Traditional PVC plastic electric gang boxes emit harmful black smoke when burned, compromising evacuation and firefighter rescue efforts. Ledes’ innovative LSZH boxes solve this problem with:
Choose Ledes for enhanced safety and peace of mind!
Sustainable and Safe Electrical Power Distribution with Ledes PVC-Free Boxes.
Traditional PVC power distribution boxes contain halogen, raising environmental and health concerns. Ledes proudly offers PVC-free boxes that are:
Trust Ledes for sustainable and responsible electrical solutions.
Enhanced Fire Safety with Ledes LSZH Deep Electrical Boxes
Our LSZH deep electrical boxes offer superior fire safety with a V0 rating, ensuring fast self-extinction within 5 seconds of encountering a flame.
Benefits:
Stay safe and secure with Ledes’ fire-rated electrical solutions.
Weatherproof and Cost-Effective Electrical Protection with Ledes Conduit.
Our electrical conduit offers exceptional UV resistance, ensuring:
Enjoy reliable and affordable electrical protection with Ledes!
Versatile and Durable Electrical Protection with Ledes Boxes.
Our electrical boxes are built to handle diverse temperatures (-45°C to +150°C) and are IP65 waterproof. Their robust construction and stainless steel screws ensure long-lasting, reliable protection.
Choose Ledes for adaptable and durable electrical solutions.
Raw Material | Halogen Free Thermoplastic |
Colors | White/Black/Grey |
Number of Entries | 4 Way |
Waterproof Rating | IP65 or Above |
Temperature Range | -45 to +150℃ (-49 to 302℉) |
Electrical Characteristics | Electrical Insulated |
Fire Rating | V0 |
Ageing Resistance | UV Stabilized |
Halogen Free | PH value is 9.0, conductivity value is 9.9 μs/cm |
Low Smoke | The minimum light transmittance within 40 minutes: 68.97% |
Conduit Alignment | Yes |
Cover Attachment | Screwed |
Products Code | Type | Width(mm) | Height(mm) | Packing |
LE-HFDJB20-1 | ￠20 | 64 | 71 | 120 |
LE-HFDJB20-2 | ￠20 | 64 | 71 | 120 |
LE-HFDJB20-V | ￠20 | 64 | 71 | 100 |
LE-HFDJB20-3 | ￠20 | 64 | 71 | 100 |
LE-HFDJB20-4 | ￠20 | 64 | 71 | 100 |
LE-HFDJB25-1 | ￠25 | 64 | 71 | 100 |
LE-HFDJB25-2 | ￠25 | 64 | 71 | 80 |
LE-HFDJB25-V | ￠25 | 64 | 71 | 80 |
LE-HFDJB25-3 | ￠25 | 64 | 71 | 80 |
LE-HFDJB25-4 | ￠25 | 64 | 71 | 48 |
LE-HFDJB32-1 | ￠32 | 64 | 71 | 80 |
LE-HFDJB32-2 | ￠32 | 64 | 71 | 70 |
LE-HFDJB32-V | ￠32 | 64 | 71 | 70 |
LE-HFDJB32-3 | ￠32 | 64 | 71 | 60 |
LE-HFDJB32-4 | ￠32 | 64 | 71 | 50 |
Remarks: can be customized thickness and color
Price List
Get the full price list now by contact our sales team.
15+ major projects globally, such as The CHPE, A.B.Brown Station, Abu Dhabi UAE Al Dhafra PV2 Project, Melbourne Metro Tunnel, Macau Island Hospital project, and more.
We are proudly the first UL and CSA Certified electrical conduit pipe and fittings supplier in China; we boast an array of certifications, including ASTM, IEC, AS/NZS, ROHS, CE, and ISO.
Ledes would like to connect with customers face-to-face, that’s why we participate in many exhibitions. For example, we have participated in the IBS exhibition in Las Vegas many times, as well as the Canton Fair. In the future, we look forward to seeing you at the show!
Ledes is a professional PVC electrical conduit and fittings factory, and we have two different facilities located in China. Our product is UL, CSA, ASTM, IEC, AS/NZS, ROHS, and CE certified.
Yes, Ledes offers fully customized services for electrical conduits and fittings. Not only the color and size, we can customize based on your construction project.
Different size of conduit has different MOQs; if you talk about PVC conduit, it is generally 3,000 meters to 5,000 meters (9,850 ft to 16,500 ft), depending on size.
The general L/D is 15 – 30 days, but it depends on your quantity.
We shipped goods to Guangzhou or Shenzhen port. Let us know if you have any special requests.
We accept 30% T/T pre-paid, and the rest 70% needs to be paid before shipment.
Yes, we support sample services; contact us to claim your sample today!
You can contact us in 3 different ways: submit the contact form, send an email, or send us WhatsApp messages.
